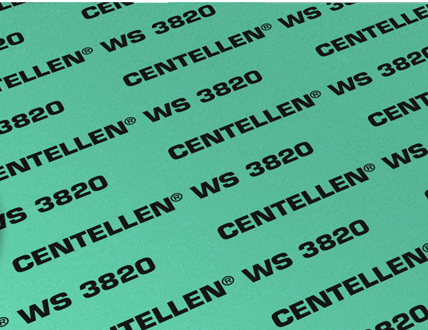

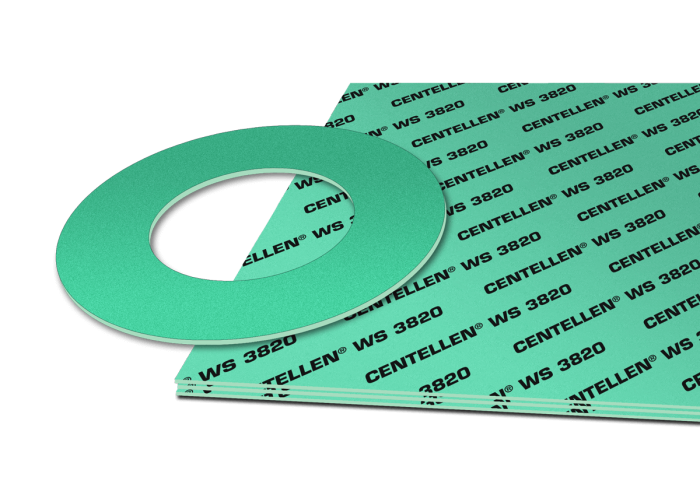

CENTELLEN^® WS 3820

Universal gasket grade with high mechanical strength.

CENTELLEN^® WS 3820 is a material which fulfils the requirements for sealants of the natural gas industry. The gasket sheets feature a thin layer of anti-stick coating. The universal chemical properties are not effected by this.

Basis

Aramid fibers bonded with NBR.

Areas of application

The material is suitable for hydrocarbons like oils or solvents, alcohols, glycols, aqueous solutions, water and steam up to 200°C. Weak alkalines and organic acids are also among possible applications.
This material is limited suitable for ketones and esters, chlorinated solvents, as well as strong alkalis and inorganic acids.

Typical technical data for thickness 2.0 mm

Density		g/cm³	1.85
Compressibility ASTM F 36 J		%	10
Recovery ASTM F 36 J		%	60
Stress relaxation DIN 52913	50 MPa, 16 h / 175 °C 50 MPa, 16 h / 300 °C	MPa MPa	30 25
KLINGER cold/hot compression 50 MPa	thickness decrease at 23 °C thickness decrease at 300 °C	% %	10 25
Tightness	DIN 28090-2	mg/s x m	0.02
Thickness increase after fluid immersion ASTM F 146	oil IRM 903: 5 h / 150 °C fuel B: 5 h / 23 °C	% %	5 8
Cold compression	DIN 28090-2	%	8
Cold recovery	DIN 28090-2	%	4
Hot compression	DIN 28090-2	%	25
Hot recovery	DIN 28090-2	%	3
Max. surface pressure EN 13555	23 °C 200 °C 250 °C	N/mm² N/mm² N/mm²	> 200 > 200 140

Dimensions of the standard sheets

Sizes	1000 x 1500, 2000 x 1500 mm
Thicknesses	0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm Other thicknesses on request
Tolerances	Thickness acc. to DIN 28091-1 Length ±50 mm, Width ±50 mm

Function und durability

The performance and service life of KLINGER gaskets depend to a large extent on proper storage and fitting - factors beyond the manufactor’s control. We can, however, vouch for the excellent quality of our products. With this in mind, please also take note of our installation manual.
