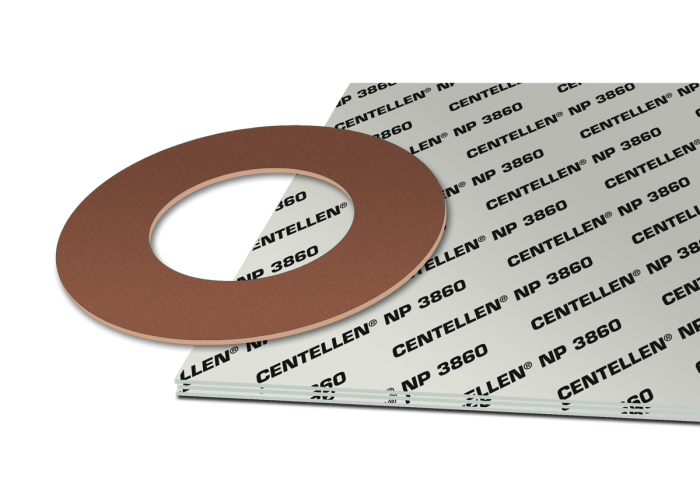

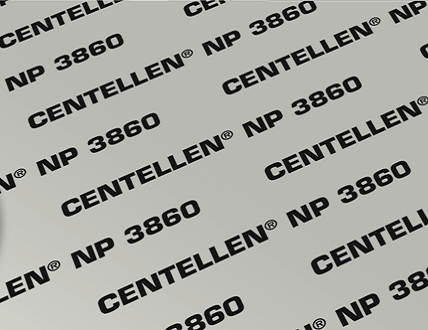

CENTELLEN^® NP 3860

Special material with excellent chemical resistance to refrigerants.

CENTELLEN^® NP 3860 is a special gas tight material designed for applications with refrigerants.

Basis

Aramid fibers bonded with NBR and CR.

Areas of application

This material is resistant to most refrigerants like freons, dichloromethane, hydrocarbons like oils, glycole as well as weak alkalines and organic acids.
The gasket material is only partly suitable for ketone and ester.

CENTELLEN® NP 3860 - resistant to refrigerants

Typical technical data for thickness 2.0 mm

Density		g/cm³	1.8
Compressibility ASTM F 36 J		%	9
Recovery ASTM F 36 J		%	55
Stress relaxation DIN 52913	50 MPa, 16 h / 175 °C 50 MPa, 16 h / 300 °C	MPa MPa	33 22
KLINGER cold/hot compression 50 MPa	thickness decrease at 23 °C thickness decrease at 300 °C	% %	12 18
Tightness	DIN 28090-2	mg/s x m	0.06
Thickness increase after fluid immersion ASTM F 146	oil IRM 903: 5 h / 150 °C fuel B: 5 h / 23 °C	% %	10 10
Cold compression	DIN 28090-2	%	8
Cold recovery	DIN 28090-2	%	4
Hot compression	DIN 28090-2	%	15
Hot recovery	DIN 28090-2	%	2
Max. surface pressure EN 13555	23 °C 200 °C 250 °C	N/mm² N/mm² N/mm²	> 200 > 200 > 200

Dimensions of the standard sheets

Sizes	1000 x 1500, 2000 x 1500 mm
Thicknesses	0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm Other thicknesses on request
Tolerances	Thickness acc. to DIN 28091-1 Length ±50 mm, Width ±50 mm

Function und durability

The performance and service life of KLINGER gaskets depend to a large extent on proper storage and fitting - factors beyond the manufactor’s control. We can, however, vouch for the excellent quality of our products. With this in mind, please also take note of our installation manual.
